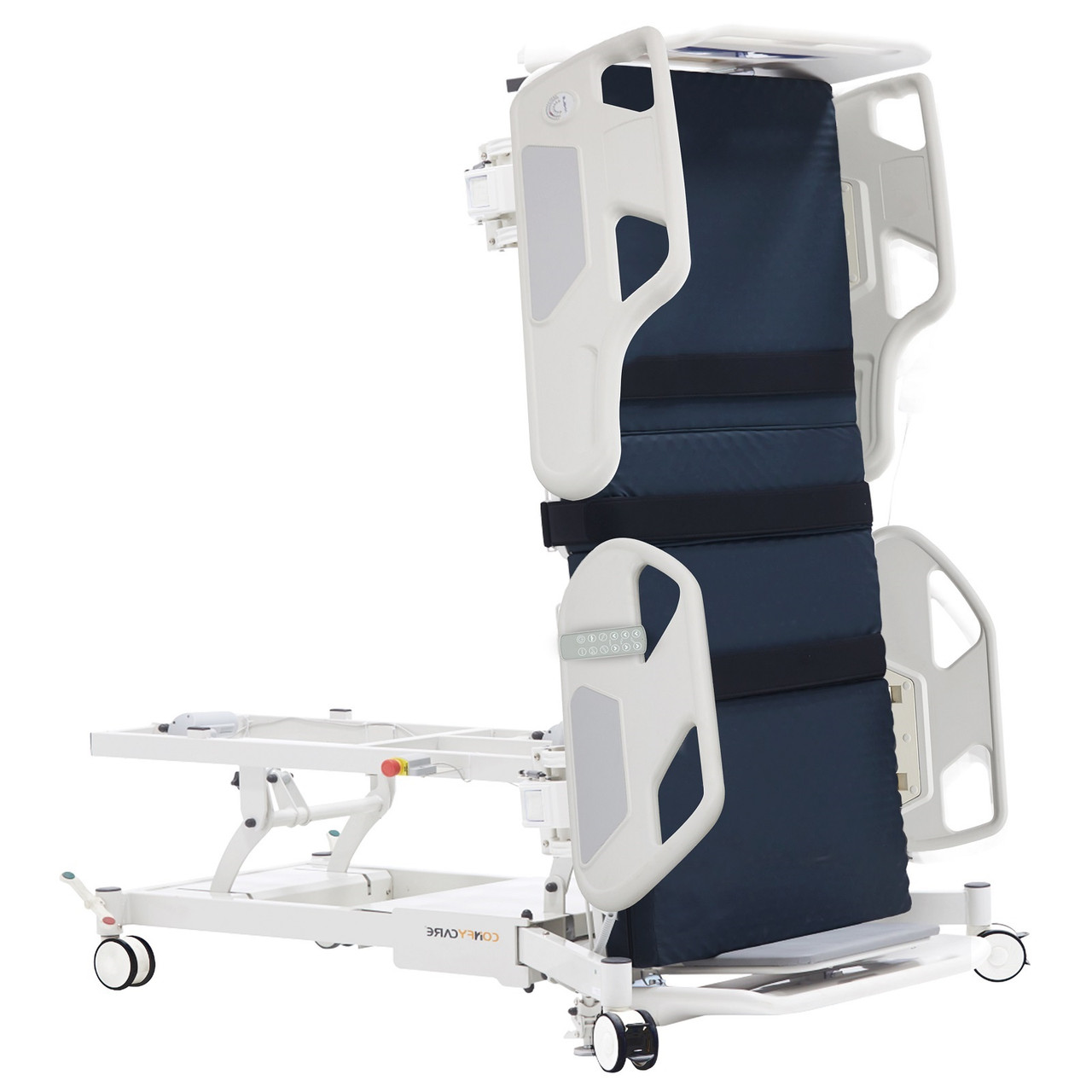

Tilting ICU Hospital Bed

PACIFIC MEDICAL Tilting ICU Hospital Bed

A strong, reliable and high quality five function tilting ICU hospital bed. Well featured including removeable boards, removeable ABS side rails, drainage bag holders, iv pole & 125mm central lock castors. An ideal product for high needs patients requiring long term treatment with the tilting function allowing treatment of the nervous system with weakness, pain, muscle spasm, and for auxiliary rehabilitation purposes such as  hemiplegia, paraplegia and traumatic brain injury and other severe patients to resume standing training.

Features:

• Electric operation by handset with integral function lockout
• Electrically operated backrest, height & knee break angle
• Backrest manual CPR release on both sides
• Tilt inclinometer
• Emergency stop button
• Removeable head & foot board
• Patient handset & nurse control panel
• Battery backup
• Four ABS safety side rails
• Four drainage bag holders on both sides
• Durable patient belts
• Heavy duty IV pole
• Auto contour simultaneous adjustment of backrest & knee break
• 125mm heavy duty central locking castors

Specification:

• Overall length: 215cm
• Overall width: 110cm
• Height range: 52-76cm
• Hoist clearance: 14cm
• Mattress platform length: 195cm
• Mattress platform width: 90cm
• Backrest angle: 0-75 degrees
• Knee break angle: 0-35 degrees
• Leg angle: 0-20 degrees
• Trendelenburg & reverse trendelenburg: 0-16 degrees & 0-13 degrees
• Tilting angle: 0-85 degrees
• SWL: 225KG
• Warranty: 3 Years
• Certification: CE, FDA, ISO13485-2016

ORDER CODES:
HBT

Delivery fees are applicable. Please contact our sales team

Please note these are an indent item and are manufactured to order.

MAINTENANCE: Please make sure your bed is serviced yearly to ensure your bed functions to its optimum. Lubrication of pivot points and moving points on your bed must be done on a regular basis.
