Indigo Care Cordless USB Bed Sensor Mat Kit (6.3mm Mono Plug) – Wireless Fall Prevention System
Overview
Reduce the risk of falls and injuries with the Indigo Care Cordless USB Bed Sensor Mat Kit. Designed for aged care and home care environments, this system provides immediate alerts to staff or caregivers when a resident leaves their bed. This complete kit operates wirelessly, eliminating tripping hazards by removing cords between the sensor mat, the resident, and the wall call point.
Compatibility Note: 6.3mm Mono Jack Important:
Based on the model code (6.3 T/S), the Receiver Unit in this kit is equipped with a 6.3mm (1/4″) Mono Jack (Tip/Sleeve).
Please verify that your Nurse Call Wall Point accepts a standard 6.3mm plug before purchasing.
If your system uses a different input (such as a smaller 3.5mm jack or an RJ12 socket), you may need a different model or an adapter.
More Comfort, Less Noise
The mat features a low-profile, 12mm thickness with a soft-touch feel, ensuring maximum comfort for the user. This design also minimizes crinkle noise when the resident moves, promoting a quieter sleep environment.
Secure & Reliable Connectivity
This system utilizes a USB connection between the mat and the transmitter. The USB plug provides a strong, secure electrical connection that increases the mat’s strength and extends its lifespan. The wireless transmitter then communicates with the receiver unit, which plugs directly into your nurse call system.
Key Features

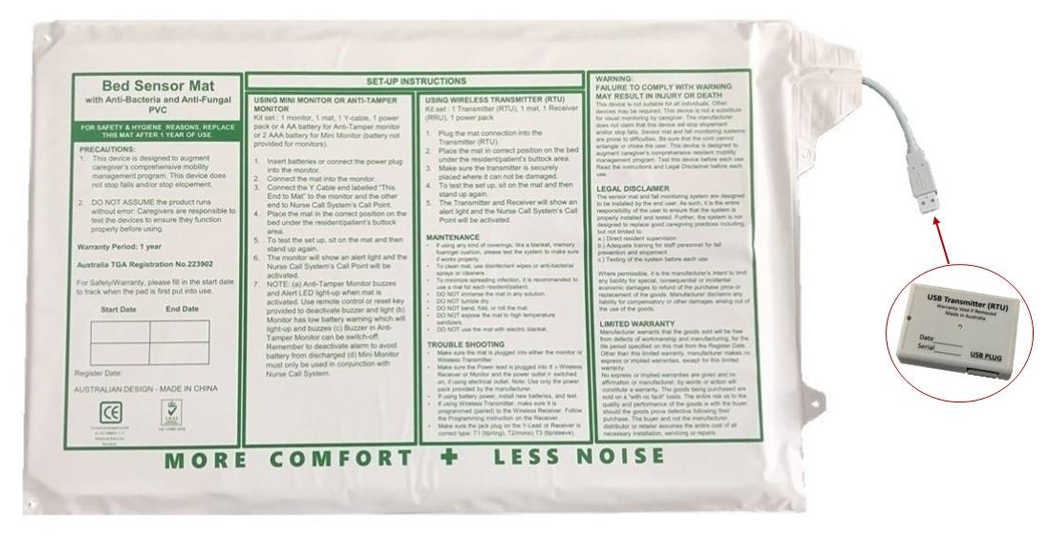

Complete Kit: Includes the Receiver Unit (RRU), USB Bed Sensor Mat, and USB Transmitter (RTU).
Cordless Safety: No cords between the bed and the wall reduce trip hazards and improve accessibility.
Plug & Play: Easy to set up and use; simply connect the USB transmitter and pair it with the receiver.
Hygienic Design: The mat is made of white PVC and can be easily cleaned and disinfected using solvent wipes.
Extended Range: Transmits up to 25 meters (line of sight).
Technical Specifications
| Feature | Specification |
| SKU | MED-B365K-W6U3 |
| Nurse Call Connection | 6.3mm (1/4″) T/S Mono Plug |
| Mat Dimensions | 770mm x 495mm x 12mm (Thickness) |
| Material | White PVC (Non-slip) |
| Transmitter Battery | 3V CR2032 (included) |
| Frequency | 433.92MHz |
| Connectivity | USB (Mat to Transmitter) |
| Electrical Resistance | < 500 Ohm |
| Compliance | RCM Approved, TGA Registered (ID 223902) |
What’s Included in the Box:
1 x Bed Sensor Mat (USB Connection)
1 x Cordless Transmitter Unit (RTU)
1 x Cordless Receiver Unit (RRU) with 6.3mm Mono Plug
| Weight | 0.2 kg |
|---|---|
| Dimensions | 10.0 × 20.0 × 15.0 cm |
| Brand | Indigo Care |
