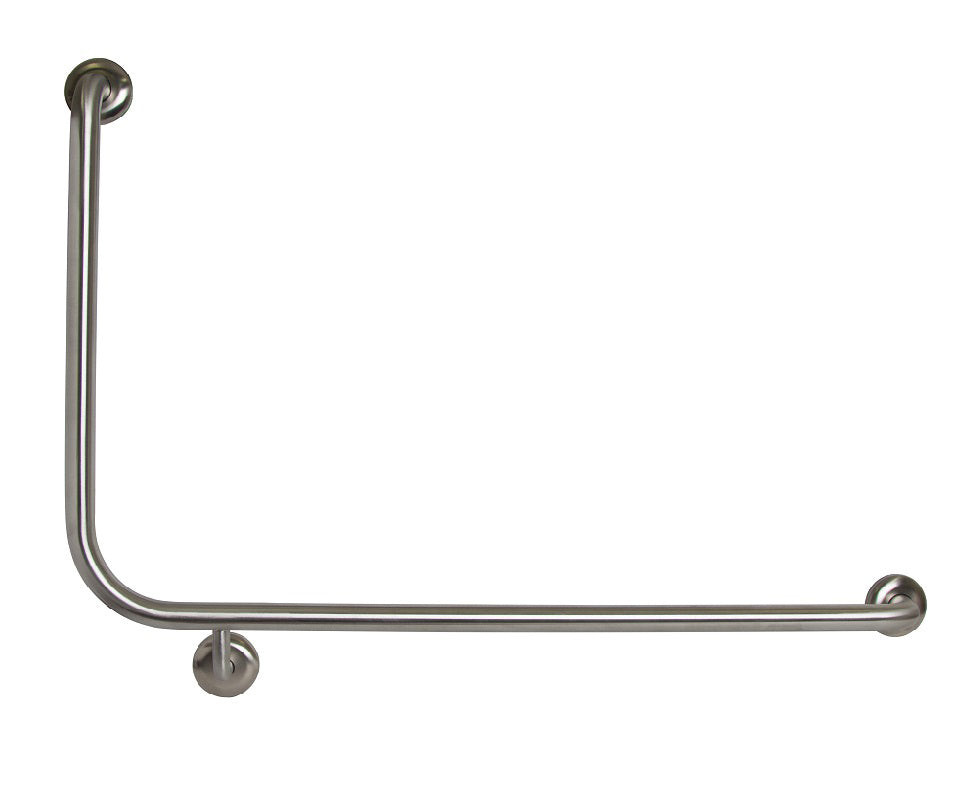

Dolphy 90° Flush Mount Side Wall

Description:

Our Dolphy series are made to the highest quality standards and feature a hidden mounting system with ‚Ausure grip‚AU handles. All grab rails come complete with mounting hardware.

Specifications:

• Product Code: DHGB0031-R
• Product Name: 90° Flush Mount Side Wall 950x600mm RH
• Colour: Silver
• Material: #304 Stainless Steel
• Mounting: Concealed Fix – 78mmØ Mount Stand-off 55mm
• Dimension: 950mm x 600mm x 90°

Features:

• To secure your safety during your bathing experience. It is important to equip your bathroom with grab bars or safety rails to assist your mobility in the bathroom.
• Rust-proof or rust-resistant, particularly for use in a shower, bath or tub.
• Material are Strong, Durable and Safe. Strength: sufficient for safe, repeated use considering weight of user and career/assistant (if required). Minimum load of 150 kg (for wide platform)
• Length of the grab rail In order to ensure rails are properly fitted into supporting wall structures/frame – customized length is increasingly used. Manufacturers may offer this while installers may order rails in full length and cut-to-measure (work in collaboration with prescriber & user- when possible)

Installation Options:

• Locate fixing position on wall or partition and mark using mounting holes, ensuring the unit is level.
• Mount the concealed mounting flanges to the wall using appropriate fixings (not supplied).
• Note: For best results, mount the horizontal component of the unit first to ensure the unit is aligned correctly to the fixing points.
• Slide covers over mounting flanges, ensuring the raised edges of the flange lines up with the dimples of the flange cover. Twist and lock into place.
• Check the unit is level to finish installation.
